Bestyear Twin Sphere Rubber Expansion Joints

Bestyear Twin Sphere Rubber Expansion Joints

by Bestyear

Bestyear Twin Sphere Rubber Expansion Joint, Size: 2 in., Length: 175 mm

Stock No.: 002-507

Mfr. Part No.:

Brand: Bestyear

Origin: China

Size
Length
 Allowable Movement Operating Conditions
Stock No.
Compression Elongation Traverse
Deflection		 Angular
Deflection		 Operating
Pressure		 Burst
Pressure		 Vacuum
Rating		 Max.
Temp.
in mm mm mm mm mm Deg. kg/cm² kg/cm² mm Hg. °C
2 50 175 50 30 35 40°
15
60
750
90
 002-507
2-1/2 65 175 50 30 35 40° 002-508
3 80 175 50 30 35 40° 002-509
4 100 225 57 35 40 35° 002-510
5 125 225 57 35 40 35° 002-511
6 150 225 57 35 40 35° 002-512
8 200 325 63 35 45 30° 002-513
10 250 325 63 35 45 30° 002-514
12 300 325 63 35 45 30° 002-515
14 350 345 63 35 45 30° 002-516
₱1,825.00 - ₱20,033.04
₱0.00
₱1,825.00 - ₱20,033.04
₱1,825.00

 Estimated shipping time: 5 Days

FREE Delivery within Metro Manila

The Twin Sphere Rubber Expansion Joints allows greater compression, elongation, transverse deflection and angular deflection than standard Single Sphere Rubber Expansion Joints. Its unique shape and longer length increase acoustic resistance and dampens hydraulic surge and shock.

Frequently Bought With

Related Products

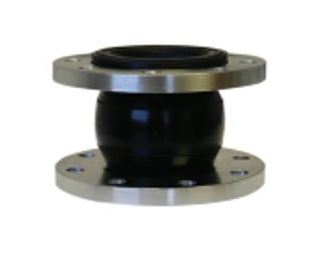

Bestyear Single Sphere Rubber Expansion Joints
